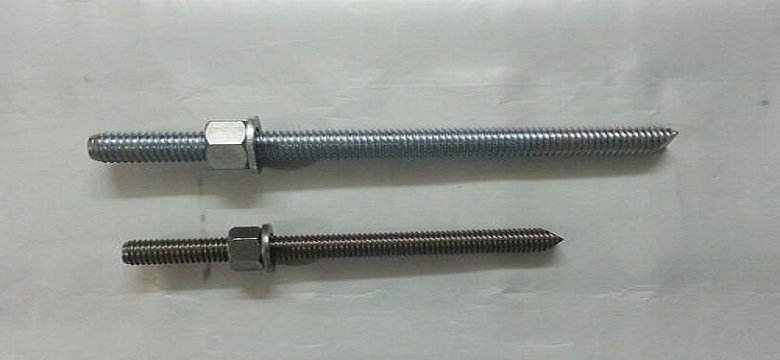

The Hastelloy C22 Anchor contain various elements in their chemical composition. These elements include molybdenum and tungsten, along with nickel and chromium. These fasteners provide resistance towards corrosion and its related damages. These fasteners also show excellent performance in environments that are subjected to various acids such as formic acid, acetic acid, and so on.
Hastelloy C276 Anchor also have a chemical composition that includes nickel, molybdenum & chromium. It also has tungsten in its chemical composition. The presence of this element in the composition makes the fasteners more resistant towards corrosion. The Hastelloy B2 Fasteners also provide resistance towards acids such as sulfuric acid, phosphoric acid, and hydrochloric acid. There also is iron along with chromium in its chemical composition, which offers excellent fabricability.
Largest Inventory
Customer Support
On Time Deliveries
ISO 9001 : 2015
Specification :-
| Specification | ASTM F593, F594, F1554 / ASME SF593, F594, F1554 |
| Standard |
DIN : DIN 934, DIN 931, DIN 970, DIN 933 UTS : UNEF, NPT, UNC, UNS, UNF, NPTF ISO : JIS standards, ISO 4033, ISO 4032, ANSI – American National Standards Institute ASME B18.5 ANSI B 28.2.4 1M as per defined in ASME B16.5 standard Hastelloy® Alloy C276 Stud Nuts length ANSI B 18.2.4 2M as per defined in ASME B18.2.2 Hastelloy Alloy C276 Hex nuts |
| Size | M3 - M56 | 3/6" to 2" | Custom Sizes |
| Length | 3 mm to 200 mm | Custom Sizes |
| Dimensions | DIN 931, 933, 934, 7991, 976, 125, ASME B18.2.1, B18.3 |
| Form | Hex, Threading, Square, Round as per Gauge Etc. |
| Threads | Unless otherwise specified, the threads shall be rolled or cut and tapped horizontally or vertically |
| Threads available | UNF, BSW, BSF, METRIC, UNC, or as required |
| Threads Configuration |
ASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric Coarse Threads |
| Certification | Dual Certified As per ASTM & ASME Codes |
| Test Certificate | As per EN 10204 / 3.1 Manufacturer Test Certificate, PED 97/23/EC Certified, Merkblatt AD 2000 W2 Certified |
| Raw materials Source | JSPL, Mukund Steel, Tata Steel, Dhamm Steel, Usha Martin,etc. |
| Packing | IN BULK: canton, pallet, Small Boxs / carton / pallet, or customer request |
| Surface Coating |
Cadmium Coating Hot Dipped Galvanizing Coating Ptfe Coated Nickel Alloy 200 Fasteners Phosphate Coating Teflon Coating Xylon Coating Zinc Coating |
Equivalent Grades
| STANDARD | WERKSTOFF NR. | UNS | JIS | GOST | EN | OR |
| Hastelloy C22 | 2.4602 | N06022 | NW 6022 | - | NiCr21Mo14W | - |
| Hastelloy C276 | 2.4819 | N10276 | NW 0276 | ХН65МВУ | NiMo16Cr15W | ЭП760 |
| Hastelloy B2 | 2.4617 | N10665 | NW 0665 | - | - | - |
| Hastelloy B3 | 2.4600 | N10675 | - | - | - | - |
| Hastelloy X | 2.4665 | N06002 | - | - | - | - |
Chemical Composition
| Grade | C | Mn | Si | S | Co | Ni | Cr | Fe | Mo | P |
| C22 | 0.010 max | 0.50 max | 0.08 max | 0.02 max | 2.5 max | Bal | 20 - 22.5 | 2 – 6 | 12.5 – 14.5 | 0.02 max |
| C276 | 0.010 max | 1.00 max | 0.08 max | 0.03 max | 2.50 max | 50.99 min* | 14.50 – 16.50 | 4.00 – 7.00 | 15.00 – 17.00 | 0.04 max |
| Hastelloy B2 | 0.02 max | 1.0 max | 0.1 max | 0.03 max | 1.0 max | Bal | 1.0 max | 2.0 max | 26 – 30 | 0.04 max |
| Hastelloy B3 | 0.01 max | 3.0 max | 0.10 max | - | 3.0 max | 65.0 min | 1.5 max | 1.5 max | 27.0-32.0 | - |
| Hastelloy X | 0.05-0.15 | 1.0 max | 1.0 max | - | 0.5-2.5 | Balance | 20.5-23.0 | 17.0-20.0 | 8.0-10.0 | - |
Mechanical Properties
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Hastelloy C22 | 8.69 g/cm3 | 1399 °C (2550 °F) | Psi – 1,00,000 , MPa – 690 | Psi – 45000 , MPa – 310 | 45% |
| Hastelloy C276 | 8.89 g/cm3 | 1370 °C (2500 °F) | Psi – 1,15,000 , MPa – 790 | Psi – 52,000 , MPa – 355 | 40 % |
| Hastelloy B2 | 9.2 g/cm3 | 1370 °C (2500 ºF ) | Psi – 1,10,000 , MPa – 760 | Psi – 51000 , MPa – 350 | 40 % |
| Hastelloy B3 | 9.22 g/cm3 | 1418 °C | 1000-2000 MPa | 350 MPa | 40% |
| Hastelloy X | 9.2 g/cm3 | 1370 °C (2500 °F) | Psi – 51,000, MPa – 350 | Psi -1,10,000, MPa -760 | 40 % |
