The Inconel 600 Washers are made up of an alloy where nickel is the base element. Along with nickel, chromium is also present in the chemical composition. The Inconel 601 Washers are made up of an alloy that is so strong that it is corrosion resistant even at elevated temperatures.

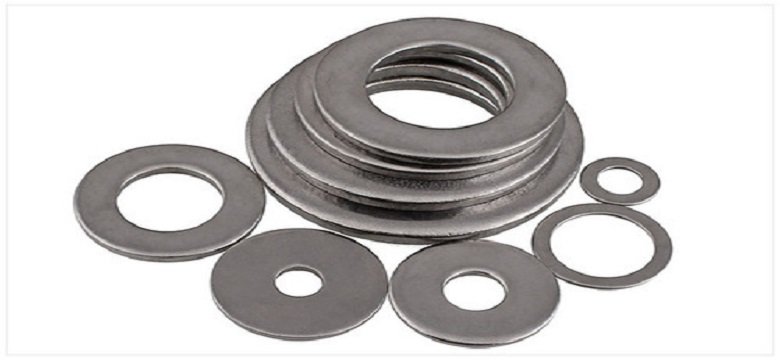

INCONEL WASHER

The Inconel 625 Washers are made up of a chemical composition where nickel is the base element. Along with nickel there are also other elements such as chromium and molybdenum present in its chemical composition. There also is an addition of aluminum and titanium. Because of all the properties as well as characteristics that Inconel 825 Washers have they are used in a large number of industrial applications.


Largest Inventory


Customer Support


On Time Deliveries


ISO 9001 : 2015

Specification :-

Specification ASTM / ASME SB 166 / 164 / 425 / 166 / 446 / 574 / 472
Standard DIN : DIN 934, DIN 931, DIN 970, DIN 933
UTS : UNEF, NPT, UNC, UNS, UNF, NPTF
ISO : JIS standards, ISO 4033, ISO 4032,
ANSI – American National Standards Institute
ASME B18.5
ANSI B 28.2.4 1M
as per defined in ASME B16.5 standard Monel Monel® Alloy 400 Stud nuts length
ANSI B 18.2.4 2M
as per defined in ASME B18.2.2 Monel Alloy 400 Hex nuts
Size M3 - M56 | 3/6" to 2" | Custom Sizes
Length 3 mm to 200 mm | Custom Sizes
Dimensions DIN, ISO, ASTM, JIS, BS, GB, IS and all International Standards
Form Hex, Threading, Square, Round as per Gauge Etc.
Threads Unless otherwise specified, the threads shall be rolled or cut and tapped horizontally or
vertically
Threads available UNF, BSW, BSF, METRIC, UNC, or as required
Threads
Configuration
ASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric Coarse Threads
Certification Dual Certified As per ASTM & ASME Codes
Test Certificate As per EN 10204 / 3.1 Manufacturer Test Certificate, PED 97/23/EC Certified, Merkblatt AD 2000 W2 Certified
Raw materials Source JSPL, Mukund Steel, Tata Steel, Dhamm Steel, Usha Martin,etc.
Packing IN BULK: canton, pallet, Small Boxs / carton / pallet, or customer request
Surface Coating Cadmium Coating
Hot Dipped Galvanizing Coating
Ptfe Coated Nickel Alloy 200 Fasteners
Phosphate Coating
Teflon Coating
Xylon Coating
Zinc Coating

Equivalent Grades

STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN
Inconel 600 2.4816 N06600 NCF 600 NA 13 МНЖМц 28-2,5-1,5 NC15FE11M NiCr15Fe
Inconel 601 2.4851 N06601 NCF 601 NA 49 XH60BT NC23FeA NiCr23Fe
Inconel 625 2.4856 N06625 NCF 625 NA 21 ХН75МБТЮ NC22DNB4M NiCr22Mo9Nb
Inconel 718 2.4668 N07718 - - - - -
Inconel X-750 2.4669 N07750 - - - - -
Incoloy 825 2.4858 N08825 NCF 825 NA 16 ЭП703 NFE30C20DUM NiCr21Mo
Incoloy 800HT 1.4859 / 1.4876 N08811 NCF 800HT NA 15(HT) ЭИ670 - X8NiCrAlTi32-21
Incoloy 925 - N09925 NCF 925 - - - -

Chemical Composition

Grade C Mn Si S Cu Fe Ni Cr
Inconel 600 0.15 max 1.00 max 0.50 max 0.015max 0.50 max 6.00 – 10.00 72.00 min 14.00 – 17.00
Inconel 601 0.10 max 1.0 max 0.5 max 0.015 max 1.0 max Balance 58.0 – 63.0 21.0 – 25.0
Inconel 625 0.10 max 0.50 max 0.50 max 0.015 max - 5.0 max 58.0 min 20.0 - 23.0
Inconel 718 0.08 max 0.35 max 0.35 max 0.015 max 0.30 max - 50.00 - 55.00 17.00 - 21.00
Incoloy X-750 0.08 max 1.00 max 0.50 max 0.01 max 0.50 max 5.0 - 9.0 70.00 min 14.00 - 17.00
825 0.05 max 1.00 max 0.5 max 0.03 max 1.50 – 3.00 22.00 min 38.00 – 46.00 19.50 – 23.50
800HT 0.06 – 0.10 1.50 max 1.00 max 0.015 max 0.75 max 39.50 min 30.00 – 35.00 19.00 – 23.00
800HT 0.03 max 1.00 max 0.5 max 0.03 max 1.5 - 3.0 22 min 19.5 - 22.5

Mechanical Properties

Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
Inconel 600 8.47 g/cm3 1413 °C (2580 °F) Psi – 95,000 , MPa – 655 Psi – 45,000 , MPa – 310 40 %
Inconel 601 8.1 g/cm3 1411 °C (2571 °F) Psi – 80,000 , MPa – 550 Psi – 30,000 , MPa – 205 30 %
Inconel 625 8.4 g/cm3 1350 °C (2460 °F) Psi – 1,35,000 , MPa – 930 Psi – 75,000 , MPa – 517 42.5 %
Inconel 718 8.2 g/cm3 1350 °C (2460 °F) Psi – 1,35,000 , MPa – 930 Psi – 75,000 , MPa – 482 45 %
Inconel X-750 - 1430°C 1267 MPa 868 MPa 25 %
825 8.14 g/cm3 1400 °C (2550 °F) Psi – 80,000 , MPa – 550 Psi – 32,000 , MPa – 220 30 %
800HT 7.94 g/cm3 1385 °C (2525 °F) Psi – 75,000 , MPa – 520 Psi – 30,000 , MPa – 205 30 %
925 8.08 g/cm3 1311°C-1366 °C 685 MPa 271 MPa 56%

Applications & Operations

We at DC Engineering make sure that our every product is made of high quality raw material. We thoroughly test each and every product before dispatching it to our customers. DC Engineering is one of the most trusted manufacturers and suppliers of fasteners and bolts which are applicable in various industries.

  • Gas Processing Industries
  • Petrochemical Industries
  • Power Generation Industries
  • Food Processing Industries
  • Chemical Industries
  • Oil & Gas Industries
  • Fertilizers Industries
  • Sugar Industries






Experimentation & Testing

DC Engineering is known for its accurate and perfect dimensions. We at DC engineering thoroughly test all our products before shipping them to the customers. We carry out destructive as well as non-destructive tests on all our products.

  • Impact Analysis
  • Eddy Current Examining
  • Power Generation Industries
  • Hydrostatic Analysis
  • Prompt Test
  • Positive Material Recognition
  • Large-Scale Test
  • Pitting Protection Test


Packaging & Dispatching

DC Engineering uses the most safest and the most effective ways of packaging for all types of deliveries. We pack our goods in various ways such as:

  • Wooden Boxes
  • Wooden Crates
  • Wooden Pallets
  • Carton Boxes
  • Shrink-Wrapped
  • Bubble Wrap Packing Material
  • Laminated & Metallized Films
  • Wooden or Plastic Crates
