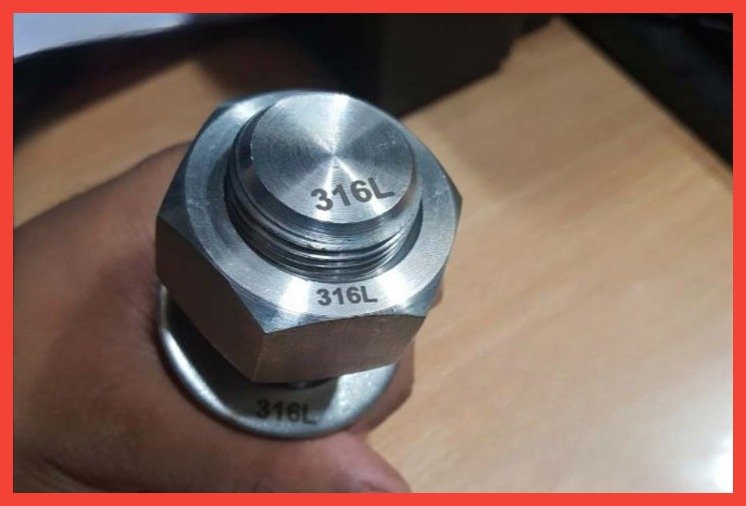

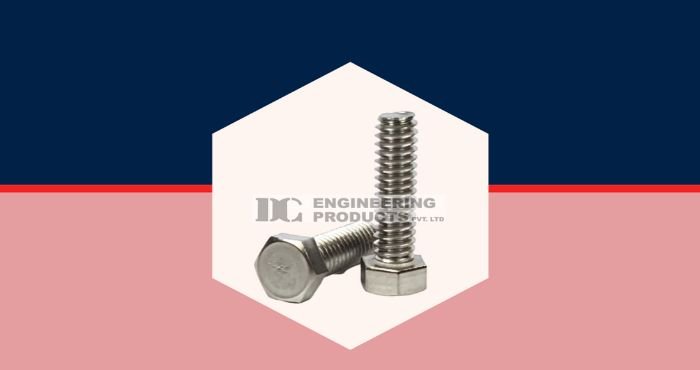

DC are the manufacturer, supplier, and stockist of stainless steel 316/316L/316TI bolts. These bolts are enriched with high strength and flexibility. Stainless steel 316 Grade Bolts is an advanced grade with extraordinary properties and characteristics. Grade 316/316L/316TI is made from austenitic steel; hence it is also called an austenitic grade. Stainless steel 316/316L/316TI grade has magnetic properties. These stainless steel 316L Bolts are enriched with other great qualities and features.
Grade 316/316L/316TI is manufactured using an excellent combination of tensile elements such as manganese, chromium, and nickel. Stainless steel 316TI Bolts also includes silicon, phosphorus, and carbon in its composition. Stainless steel bolts are commonly used for joining two or more objects together.
Largest Inventory
Customer Support
On Time Deliveries
ISO 9001 : 2015
Specification
| Specifications | ASTM A193 ASME SA193 |
| Standard | DIN, ASTM, BS and all International Standards |
| Size | M3 - M56 | 3/6" to 2" | Custom Sizes |
| Length | 3 mm to 200 mm | Custom Sizes |
| Dimensions | DIN 931, 933, 934, 7991, 976, 125, ASME B18.2.1, B18.3 |
| Form | Hex, Threading, Square, Round as per Gauge Etc. |
| Threads | Unless otherwise specified, the threads shall be rolled or cut and tapped horizontally or vertically |
| Threads available | UNF, BSW, BSF, METRIC, UNC, or as required |
| Threads Configuration | ASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric Coarse Threads |
| Certification | Dual Certified As per ASTM & ASME Codes |
| Test Certificate | As per EN 10204 / 3.1 Manufacturer Test Certificate, PED 97/23/EC Certified, Merkblatt AD 2000 W2 Certified |
| Raw materials Source | JSPL, Mukund Steel, Tata Steel, Dhamm Steel, Usha Martin,etc. |
| Packing | IN BULK: canton, pallet, Small Boxs / carton / pallet, or customer request |
| Surface Coating |
Cadmium Coating Hot Dipped Galvanizing Coating Ptfe Coated Nickel Alloy 200 Fasteners Phosphate Coating Teflon Coating Xylon Coating Zinc Coating |
Equivalent Grades
| AISI Grade Equivalent | JIS Equivalent | Stainless Steel Notation | EN/DIN Numerical Equivalent | UNS designation |
EN/DIN Symbolical Equivalent |
| AISI 316 | SUS316 | SS 316 | EN 1.4401 | UNS S31600 | X5CrNiMo17-12-2 |
| AISI 316L | SUS316 L | SS 316 L | EN 1.4404 | UNS S31603 | X2CrNiMo17-12-2 |
| AISI 316Ti | SUS316 Ti | SS 316 Ti | EN 1.4571 | UNS S31635 | X6CrNiMoTi17-12-2 |
Chemical Composition
| Element | Ni | C | Mn | P | S | Si | Cr | Mo |
| SS 316 | 10 – 14 | 0.08 | 2.0 max | 0.045 max | 0.030 max | 0.75 max | 16 – 18 | 2 – 3 |
| SS 316L | 10 – 14 | 0.01 max | 2.0 max | 0.045 max | 0.030 max | 1.00 max | 16 – 18 | 2 – 3 |
| SS 316Ti | 10 – 14 | 0.03 max | 2.0 max | 0.045 max | 0.030 max | 0.75 max | 16 – 18 | 2 – 3 |
Mechanical Properties
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| SS 316 | 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| SS 316L | 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |

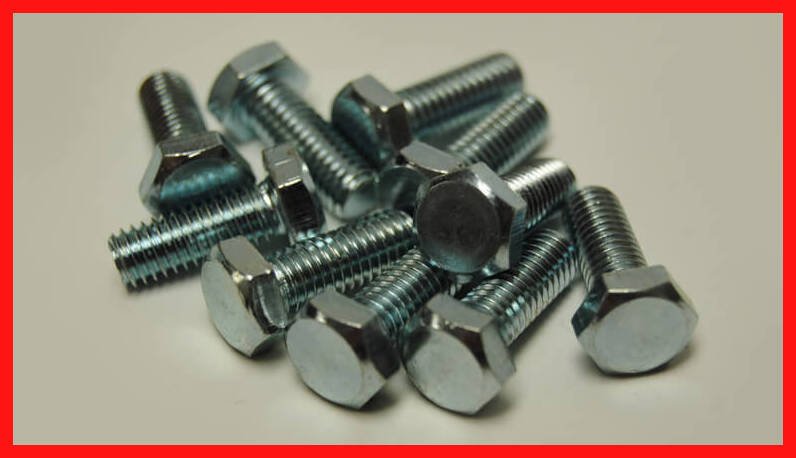

Stainless Steel 316 Hex Bolt Dimension
SS 316 Hex Bolt Dimension Table in Saudi Arabia, UNS S31600 Hex Bolt dimension chart in UAE, M12 Size Heavy Hex bolt Chart in Singapore, Size M16 Stud Bolt Dimensional Chart in KSA.
NOMINAL SIZE (D) |
BODY DIAMETER |
HEAD THICKNESS ASTM A193 |
ACROASTM A193 THE FLATS |
ACROASTM A193 CORNERS |
||||
|---|---|---|---|---|---|---|---|---|
D (MAX) |
D (MIN) |
H (MAX) |
H (MIN) |
F (MAX) |
F (MIN) |
C (MAX) |
C (MIN) |
|
m10 |
10.00 |
9.78 |
6.63 |
6.17 |
17.00 |
15.73 |
18.48 |
17.77 |
m12 |
12.00 |
11.73 |
7.76 |
4.24 |
19.00 |
17.73 |
20.78 |
20.03 |
m14 |
14.00 |
13.73 |
9.09 |
8.51 |
22.00 |
20.67 |
24.25 |
23.35 |
m16 |
16.00 |
15.73 |
10.32 |
9.68 |
24.00 |
23.67 |
27.71 |
26.75 |
m20 |
20.00 |
19.67 |
12.88 |
12.12 |
30.00 |
29.16 |
34.64 |
32.95 |
m24 |
24.00 |
23.67 |
15.44 |
14.56 |
36.00 |
35.00 |
41.57 |
39.55 |
m30 |
30.00 |
29.67 |
19.48 |
17.92 |
46.00 |
45.00 |
53.12 |
50.85 |
m36 |
36.00 |
35.61 |
23.38 |
21.63 |
55.00 |
53.80 |
63.51 |
60.79 |
m42 |
42.00 |
41.38 |
26.97 |
25.03 |
65.00 |
62.90 |
75.06 |
71.71 |
m48 |
48.00 |
47.38 |
31.07 |
28.93 |
75.00 |
72.60 |
86.60 |
82.76 |
m56 |
56.00 |
55.26 |
36.2 |
33.80 |
85.00 |
82.20 |
98.15 |
93.71 |
m64 |
64.00 |
63.26 |
41.32 |
38.68 |
95.00 |
91.80 |
109.70 |
104.65 |
m72 |
72.00 |
71.26 |
46.45 |
43.55 |
105.00 |
101.40 |
121.24 |
115.60 |
m80 |
80.00 |
79.26 |
51.58 |
48.42 |
115.00 |
111.00 |
132.72 |
126.54 |
m90 |
90.00 |
89.13 |
57.74 |
54.26 |
130.00 |
125.50 |
150.11 |
143.07 |
m100 |
90.00 |
99.13 |
63.9 |
60.10 |
145.00 |
140.00 |
167.43 |
159.60 |
Note:- Following measurements are in millimeters
Stainless Steel 316 Bolt Torque Chart
SS 316 Hex Bolt Torque Table in Bahrain, UNS S31600 Hex Bolt Torque chart in philippines, M12 Size Heavy Hex bolt Torque Chart in South Africa, Size M16 Stud Bolt Torque Chart in Saudi Arabia.
Torque Specifications |
|||||||
|---|---|---|---|---|---|---|---|
Bolt Size
Inches or # |
Threads
Per Inch |
Standard Dry Torque in Inch-Pounds
|
|||||
316
Stainless Steel |
316
Stainless Steel |
||||||
#2 |
56 |
2.5 |
2.6 |
||||
64 |
3.0 |
3.2 |
|||||
#3 |
48 |
3.9 |
4.0 |
||||
56 |
4.4 |
4.6 |
|||||
#4 |
40 |
5.2 |
5.5 |
||||
48 |
6.6 |
6.9 |
|||||
#5 |
40 |
7.7 |
8.1 |
||||
44 |
9.4 |
9.8 |
|||||
#6 |
32 |
9.6 |
10.1 |
||||
40 |
12.1 |
12.7 |
|||||
#8 |
32 |
19.8 |
20.7 |
||||
36 |
22.0 |
23.0 |
|||||
#10 |
24 |
22.8 |
23.8 |
||||
32 |
31.7 |
33.1 |
|||||
Bolt Size
Inches or # |
Threads
Per Inch |
Standard Dry Torque in Inch-Pounds
|
|||||
316
Stainless Steel |
316
Stainless Steel |
||||||
1/4 |
20 |
75.2 |
78.8 |
||||
28 |
94.0 |
99.0 |
|||||
5/16 |
18 |
132 |
138 |
||||
24 |
142 |
147 |
|||||
3/8 |
16 |
236 |
247 |
||||
24 |
259 |
271 |
|||||
7/16 |
14 |
376 |
393 |
||||
20 |
400 |
418 |
|||||
1/2 |
13 |
517 |
542 |
||||
20 |
541 |
565 |
|||||
Bolt Size
Inches or # |
Threads
Per Inch |
Standard Dry Torque in Inch-Pounds
|
|||||
316
Stainless Steel |
316
Stainless Steel |
||||||
9/16 |
12 |
682 |
713 |
||||
18 |
752 |
787 |
|||||
5/8 |
11 |
1110 |
1160 |
||||
18 |
1244 |
1301 |
|||||
3/4 |
10 |
1530 |
1582 |
||||
16 |
1490 |
1558 |
|||||
7/8 |
9 |
2328 |
2430 |
||||
14 |
2318 |
2420 |
|||||
1 |
8 |
3440 |
3595 |
||||
14 |
3110 |
3250 |
|||||
Bolt Size
Inches or # |
Threads
Per Inch |
Standard Dry Torque in Foot-Pounds
|
|||||
316
Stainless Steel |
316
Stainless Steel |
||||||
1 1/8 |
7 |
413 |
432 |
||||
12 |
390 |
408 |
|||||
1 1/4 |
7 |
523 |
546 |
||||
12 |
480 |
504 |
|||||
1 1/2 |
6 |
888 |
930 |
||||
12 |
703 |
732 |
|||||
Note:- Following measurements are in millimeters
Applications & Operations
We at DC Engineering make sure that our every product is made of high quality raw material. We thoroughly test each and every product before dispatching it to our customers. DC Engineering is one of the most trusted manufacturers and suppliers of fasteners and bolts which are applicable in various industries.
- Gas Processing Industries
- Petrochemical Industries
- Power Generation Industries
- Food Processing Industries
- Chemical Industries
- Oil & Gas Industries
- Fertilizers Industries
- Sugar Industries
Experimentation & Testing
DC Engineering is known for its accurate and perfect dimensions. We at DC engineering thoroughly test all our products before shipping them to the customers. We carry out destructive as well as non-destructive tests on all our products.
- Impact Analysis
- Eddy Current Examining
- Power Generation Industries
- Hydrostatic Analysis
- Prompt Test
- Positive Material Recognition
- Large-Scale Test
- Pitting Protection Test
Packaging & Dispatching
DC Engineering uses the most safest and the most effective ways of packaging for all types of deliveries. We pack our goods in various ways such as:
- Wooden Boxes
- Wooden Crates
- Wooden Pallets
- Carton Boxes
- Shrink-Wrapped
- Bubble Wrap Packing Material
- Laminated & Metallized Films
- Wooden or Plastic Crates
