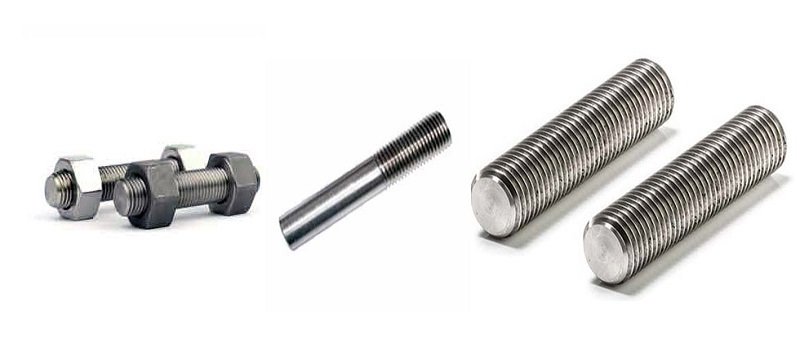

The HASTELLOY C4/C22/C276 Studs have a range of properties and characteristics because of the elements present in the chemical composition. The HASTELLOY C4 Fasteners have the characteristic of being resistant towards corrosion. Because of such properties these fasteners are used in a large number of industrial applications.
Also the necessary rules and regulations are taken into consideration while producing these HASTELLOY C4/C22/C276 Grade Studs so that they satisfy the requirement of the applications and also the needs of the clients. The required norms as well as standards are also considered so that these fasteners perform well.
Largest Inventory
Customer Support
On Time Deliveries
ISO 9001 : 2015
Specification
| Specifications | ASTM B574 ASTM SB574 |
|---|---|
| Stud Bolt size | M02 to M33, Custom Sizes |
| Stud Bolts Length | 3 mm to 200 mm |
| Stud Bolt | UNF, BSW, BSF, METRIC, UNC, or as required |
| Standard of Stud Bolts | DIN 525, DIN 835, DIN 938, DIN 939, DIN 940, DIN 949-1, DIN 949-2, DIN 975, DIN 976, DIN 2509, BS 2693, BS 3692, BS 4439, IS 1862, IS 13178, ANSI/ASME B18.31.2, ANSI/ASME B16.5 |
| Form of Stud Bolts | Hex, Threading, Square, Round as per Gauge Etc. |
| Raw materials Source | JSPL, Mukund Steel, Tata Steel, Dhamm Steel, Usha Martin, etc. |
| Threads Configuration | ASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric Coarse Threads |
| Certification | Dual Certified As per ASTM & ASME Codes |
| Popular Types of Stud Bolt | Stud Bolts, Fully Threaded Stud Bolts, Tap End Stud Bolts, Double End Stud Bolts, Stud Bolts with Reduced Shank, Reduced Shank, Flange Stud Bolts, Flange Bolting, Weld Studs |
| Threads | Unless otherwise specified, the threads shall be rolled or cut and tapped horizontally or vertically |
| Test Certificate of Stud Bolts | as per EN 10204 / 3.1 Manufacturer Test Certificate |
| Additional Certifications | PED 97/23/EC Certified, Merkblatt AD 2000 W2 Certified |
| Production process | M24-M100: hot forging, M2-M24: Cold Froging, for custom-made connecting element machining and CNC |
| Head drive of Stud Bolts | Six-Lobe, Phillips, Phillips/Slot, Slotted etc |
| Packing of Stud Bolts | IN BULK: canton, pallet, Small Boxs / carton / pallet, or customer request |
| Surface Coating |
Ptfe Coated Stud Bolts Phosphate Coating Teflon Coating Zinc Coating Hot Dipped Galvanizing Coating Cadmium Coating Xylon Coating |
| Stud Bolts finishing |
Coatings & Finishes : Self-Colour, Passivated, Bright Zinc Plated (BZP), Hot Dip Galvanised (HDG), Sherardized, some special one like DACROMET Geometry and Mechanically Applied coating ,Dacroment, nickel plated, anodizing, plated zinc-nickel Zinc (blue, black, yellow, white), black oxide. |
Equivalent Grades
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN | OR |
| Hastelloy C4 | 2.4610 | N06455 | - | - | - | - | - | - |
| Hastelloy C22 | 2.4602 | N06022 | NW 6022 | – | – | – | NiCr21Mo14W | - |
| Hastelloy C276 | 2.4819 | N10276 | NW 0276 | – | ХН65МВУ | – | NiMo16Cr15W | ЭП760 |
Chemical Composition
| Grade | Ni | C | Mo | Mn | Si | Fe | P | S | Co | Cr | Ti |
| Hastelloy C4 | 65.0 min | 0.01 max | 14 – 17 | 1.0 max | 0.08 max | 3.0 max | - | - | 2.0 max | 14 – 18 | 0.7 max |
| Hastelloy C22 | Balance | 0.010 max | 12.5 – 14.5 | 0.50 max | 0.08 max | 2 – 6 | 0.02 max | 0.02 max | 2.5 max | 20 – 22.5 | - |
| Hastelloy C276 | Balance | 0.010 max | 15 – 17 | 1.0 max | 0.08 max | 4 – 7 | 0.04 max | 0.03 max | 2.5 max | 14.5 – 16.5 | - |
Mechanical Properties
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Hastelloy C4 | 8.64 g/cm3 | 1350-1400 °C | MPa – 783 | MPa – 365 | 55% |
| Hastelloy C22 | 8.69 g/cm3 | 1399 °C (2550 °F) | Psi – 45000 , MPa – 310 | Psi – 1,00,000 , MPa – 690 | 45 % |
| Hastelloy C276 | 8.89 g/cm3 | 1370 °C (2500 °F) | Psi – 52,000 , MPa – 355 | Psi – 1,15,000 , MPa – 790 | 40 % |
Applications & Operations
We at DC Engineering make sure that our every product is made of high quality raw material. We thoroughly test each and every product before dispatching it to our customers. DC Engineering is one of the most trusted manufacturers and suppliers of fasteners and bolts which are applicable in various industries.
- Gas Processing Industries
- Petrochemical Industries
- Power Generation Industries
- Food Processing Industries
- Chemical Industries
- Oil & Gas Industries
- Fertilizers Industries
- Sugar Industries
Experimentation & Testing
DC Engineering is known for its accurate and perfect dimensions. We at DC engineering thoroughly test all our products before shipping them to the customers. We carry out destructive as well as non-destructive tests on all our products.
- Impact Analysis
- Eddy Current Examining
- Power Generation Industries
- Hydrostatic Analysis
- Prompt Test
- Positive Material Recognition
- Large-Scale Test
- Pitting Protection Test
Packaging & Dispatching
DC Engineering uses the most safest and the most effective ways of packaging for all types of deliveries. We pack our goods in various ways such as:
- Wooden Boxes
- Wooden Crates
- Wooden Pallets
- Carton Boxes
- Shrink-Wrapped
- Bubble Wrap Packing Material
- Laminated & Metallized Films
- Wooden or Plastic Crates
